How to Refill Toner Cartridge Samsung?

- Jan 18, 2019 -

Remove the Samsung ML-1660, ML-1666, SCX-3200, SCX-3205 cartridges from the printer and place them on the table in front of you. Figure 1 shows the side cover of the cartridge. It has three marked solder joints. You need to cut off these spots to remove the lid. To this end, slide the cutter below the cutting point and cut it carefully and evenly (Fig. 2).

for samsung toner.jpg


Then you can take off the cover (Figure 3). Put it aside; you need it after refilling the cartridge and replacing the chip. Now you can see the sealing plug (Figure 4). You can remove it with pincers or putty knives. To this end, slide the putty knife under the plug and use it as a lever.


Take a plastic bag and shake the cartridge so that the old powder drips into the bag or is sucked by a toner vacuum cleaner. Old toners and new toners have different physical and chemical properties, which may cause coagulation if they are mixed.


for samsung cartridge.jpg


Refill cartridge Samsung ML-1660, ML-1666, SCX-3200, SCX-3205:

Wrap the funnel onto the bottle with the new toner to refill the Samsung ML-1660, ML-1666, SCX-3200 and SCX-3205 cartridges. Fill in toner (Fig. 5). After refilling the cartridge, the sealing plug can be re-inserted.


Note: The filling port must be sealed. Place the cartridge on a piece of white paper and tap it to see if it is sealed. If the toner drops on the paper, the opening is not properly sealed. After refilling the cartridge, it is necessary to replace the chip which monitors the filling level of the cartridge. You have to replace it with each supplement.


Replace the chips of Samsung ML-1660, ML-1666, SCX-3200 and SCX-3205 cartridges:

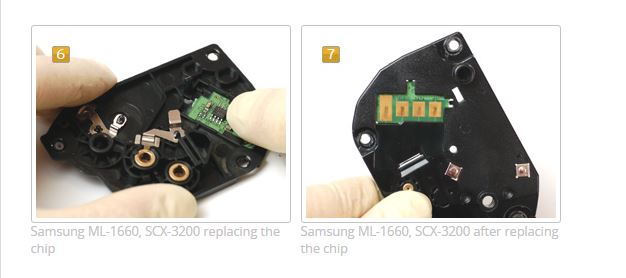

Remove the side cover from the beginning and replace the chip (Fig. 6). It can be easily pulled out of the guide rail. Insert the replacement chip in the same direction. After replacing the chip, the side cover should be shown in Figure 7.


After replacing the chip, the printer will recognize the cartridge as full. Please refill the toner to get the complete printing ability of the cartridge. Otherwise, due to the lack of toner, the cartridge may not be able to reset. In this case, the replacement chip does not work. The chip can be used once.




Replace the chips of Samsung ML-1660, ML-1666, SCX-3200 and SCX-3205 cartridges:


Remove the side cover from the beginning and replace the chip (Fig. 6). It can be easily pulled out of the guide rail. Insert the replacement chip in the same direction. After replacing the chip, the side cover should be shown in Figure 7.


After replacing the chip, the printer will recognize the cartridge as full. Please refill the toner to get the complete printing ability of the cartridge. Otherwise, due to the lack of toner, the cartridge may not be able to reset. In this case, the replacement chip does not work. The chip can be used once.


for samsung refill.jpg


Assemble Samsung ML-1660, ML-1666, SCX-3200, SCX-3205 cartridges:


After refilling Samsung ML-1660, ML-1666, SCX-3200, SCX-3205 and replacing the chip, you can reassemble the cartridge. Everything should have no power to assemble. To fix the lid firmly on the cartridge, use fabric tape (Fig. 8). The first page printed after refilling may be of poor quality because the toner needs to be evenly dispersed in the cartridge. Once it has, cartridges should produce the same print quality as before.




Safety instructions for handling supplementary toner


If not handled carefully, refilling carbon powder and carbon powder can cause serious health problems. We recommend that respiratory protection devices or suction chambers should always be used when filling toner cartridges. In addition, toner powders and refilled toners can be highly flammable with appropriate oxygen mixtures. Please note that under no circumstances should you touch the drum or expose it to direct sunlight. This may lead to printing errors. Octopus Office is not responsible for the success or failure of the procedure.


All trademarks, trade names or service marks are the property of their respective owners and are used only for identification purposes.
