What is Primary charge roller?

- Feb 28, 2018 -


Primary charge roller, a cylinder made of metal core and conductive rubber. Its main function is to adsorb toner evenly on the drum core, and to eliminate the residual potential on the drum core.


Primary charge roller is a new environmentally friendly charging method that reduces the generation of ozone and charges evenly and noiselessly. Is widely used in laser printers, also used in low-speed copiers. Laser printer charging


roller voltage -600V to -700V, there are positive charge. Charged with the charging wire is relatively high, generally 6000V to 8000V.


Primary charge roller structur


Charging roller is composed of metal core and metal core coated elastic rubber composition, the specific structure of the following general types:

1. The charging roller is tightly coated with a layer of low hardness conductive elastic layer outside the metal core. The elastic layer is coated with a surface layer with a thin surface layer of about several to several tens of microns with high resistance.


2. The charging roller has only low hardness conductive elastic layer outside the metal core, but the outer surface is specially treated.


3. The charging roller is a surface layer outside the low-hardness conductive elastic layer. The surface layer is a rubber tube with high resistance ranging from several tens of micrometers to 1 millimeter.


4. The charging roller has a uniform electric layer between the low hardness conductive elastic layer and the surface layer, the electric layer thickness is 1-3μm, and the surface layer thickness is 40-80μm.

e

, a cylinder made of metal core and conductive rubber. Its main function is to adsorb toner evenly on the drum core, and to eliminate the residual potential on the drum core.


Primary charge roller is a new environmentally friendly charging method that reduces the generation of ozone and charges evenly and noiselessly. Is widely used in laser printers, also used in low-speed copiers. Laser printer charging


roller voltage -600V to -700V, there are positive charge. Charged with the charging wire is relatively high, generally 6000V to 8000V.


Primary charge roller structur


Charging roller is composed of metal core and metal core coated elastic rubber composition, the specific structure of the following general types:

1. The charging roller is tightly coated with a layer of low hardness conductive elastic layer outside the metal core. The elastic layer is coated with a surface layer with a thin surface layer of about several to several tens of microns with high resistance.


2. The charging roller has only low hardness conductive elastic layer outside the metal core, but the outer surface is specially treated.


3. The charging roller is a surface layer outside the low-hardness conductive elastic layer. The surface layer is a rubber tube with high resistance ranging from several tens of micrometers to 1 millimeter.


4. The charging roller has a uniform electric layer between the low hardness conductive elastic layer and the surface layer, the electric layer thickness is 1-3μm, and the surface layer thickness is 40-80μm.

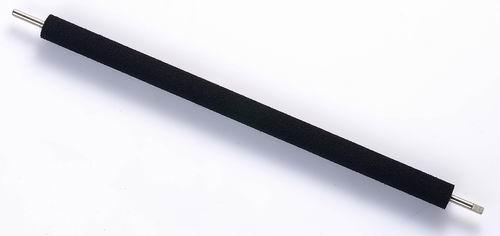

Primary charge roller.jpg
